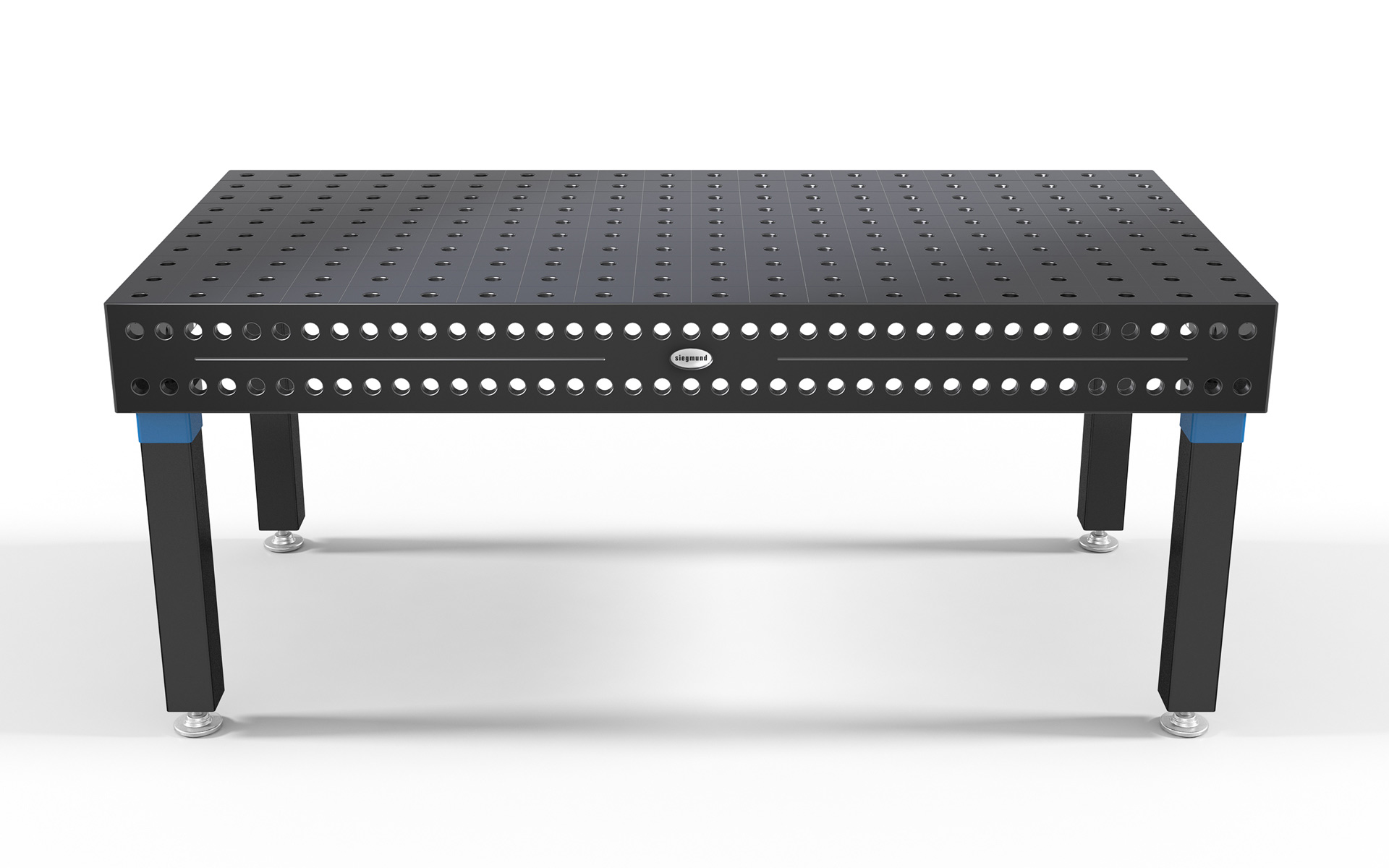

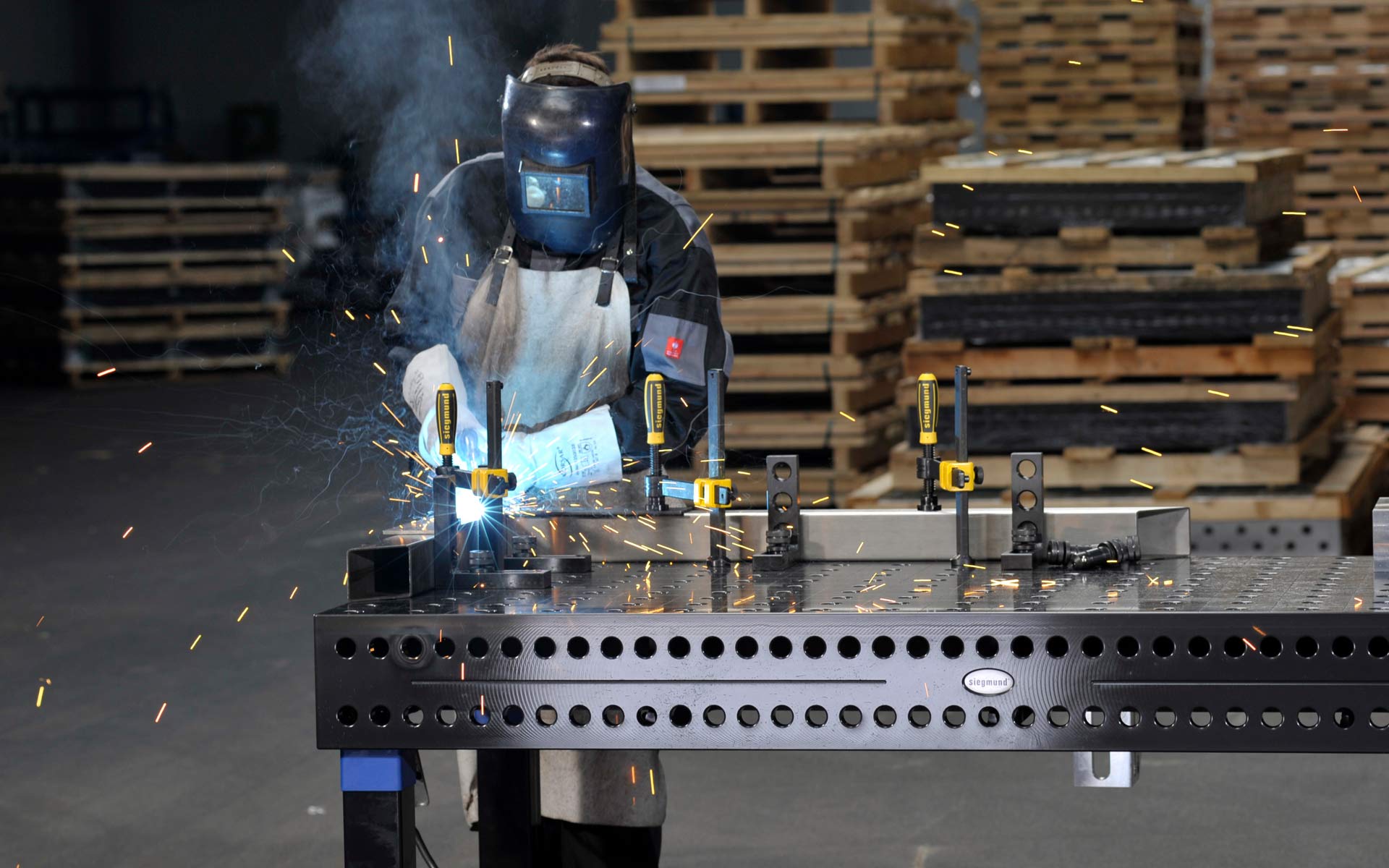

The welding table has now rounded bore holes and edges instead of chamfered bore holes and edges – with clear benefits: Fixing bolts almost “glide” smoothly into the bore holes without irritating tilting which enables a quick and comfortable working. The rounding prevents damage to the edges when getting in tough contact with tools and offers a comfortable haptic feeling. The welding table offers even more clamping possibilities than the predecessor due to double bore hole lines at the table side.

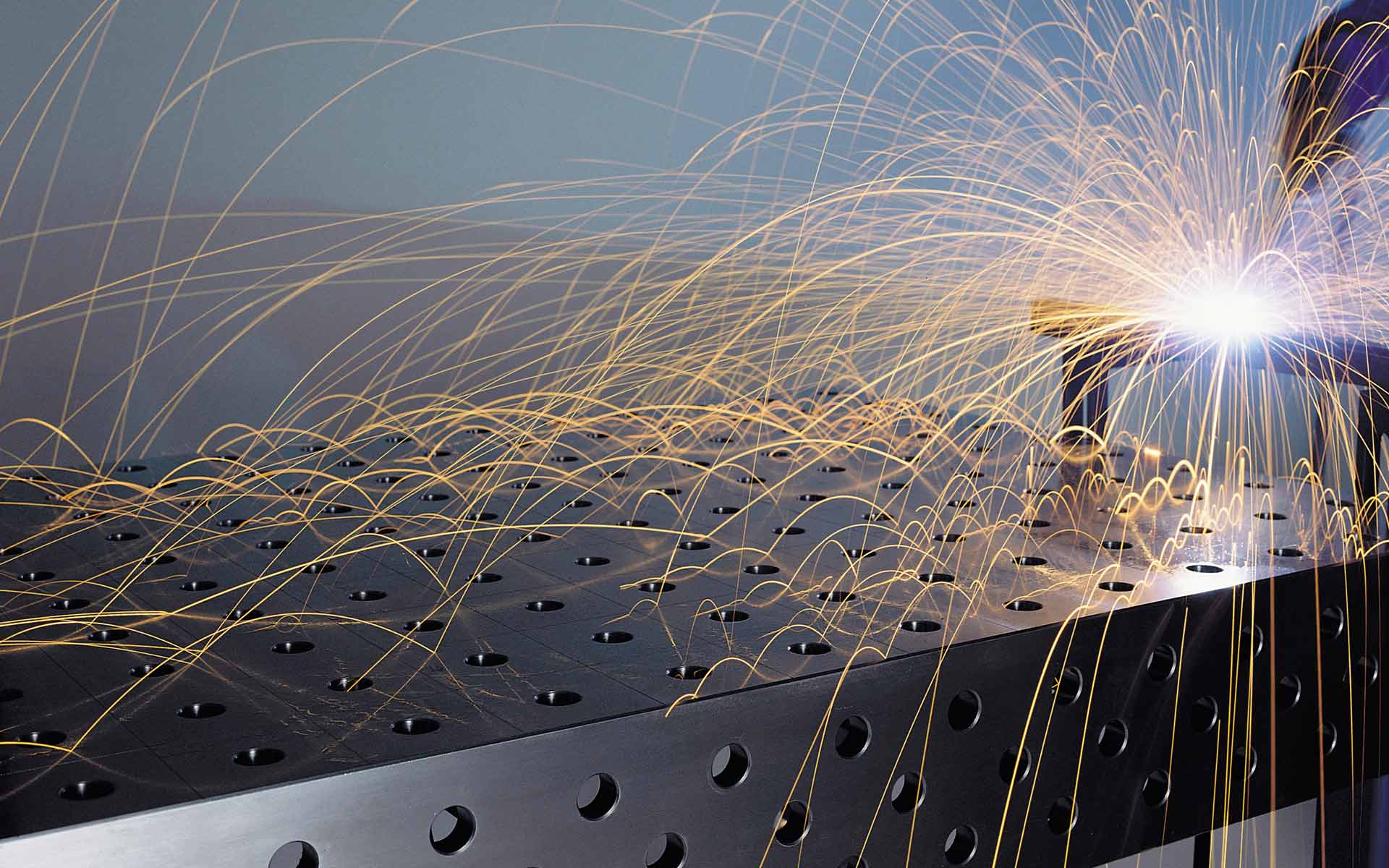

Its quality sets a new benchmark, because it is consequently planned for extreme load and long life-time. This is accomplished by the use of pre-hardened steel in combination with a plasma nitrided surface finishing. The table has overall a hardness of 700 Vickers (Comparison: steel rasp = 600 Vickers) and is thereby extremely scratchresistant, more rust-resistant and has a less adhesion of welding spatters. The plasma-nitrided surface enables ideal wear resistance and corrosion resistance, favourable for a long lifetime. Moreover, the plasma-nitriding is one of the most ecological hardening processes as only nitrogen, hydrogen and oxygen are used. The average lifetime is 50 years if it is properly maintained.

Selić Industriedesign service: Design concept, design sketches, design consultation, CAD design support, CAD modeling, design refinement, processing of design data for the engineering department
